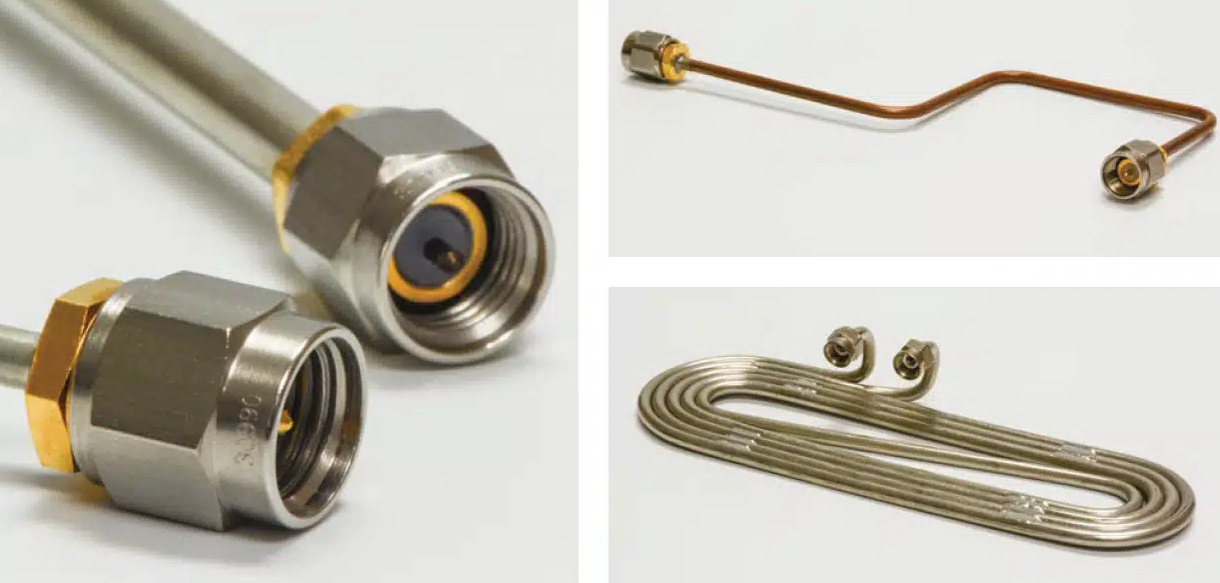

Semi-Rigid Cables & Cable Assemblies
.png)
Semi-rigid cable comes as close as possible to the ideal coaxial cable due to its superior electrical performance, exceptional shielding effectiveness, and dimensional stability.
Semi-Rigid cable assemblies deliver exceptional performance in both military and commercial applications, meeting the industry’s highest quality standards.
We offer semi-rigid coaxial cable options with a large range of impedances, diameters, materials, and finishes.
Features
- Manufactured to meet J-STD-001E cable assembly standards and MIL-C-17 specifications
- Inspected per IPC-A-610 and IPC-A-620.
- Custom-designed per drawings.
- Excellent VSWR performance and phase stability.
- Vast selection of cable and connector options.
- Computerized forming equipment ensures repeatability and accuracy.
- MIL-STD compliant connectors.
- Phase-matching available.
Offerings
50 Ω Copper & 50 Ω Aluminum
- Available with copper, aluminum, silver-plated and tin-plated outer conductors.
- Diameters from 0.013″ to 0.390″.
Low-Loss 50 Ω Copper & Low-Loss 50 Ω Aluminum
Low-loss semi-rigid cables offer lower attenuation, better phase stability with temperature, and a higher operating temperature compared to traditional solid PTFE semi-rigid cables.
- Available with copper, tin-plated copper, and tin-plated aluminum outer conductors.
Non-50 Ω Copper
With impedances from 5 to 100 ohms and diameters from 0.020 to 0.250 inch, our specialized impedance semi-rigid cables are the right solution for any impedance matching requirement.
- Available with copper and tin-plated copper outer conductors.
Stainless Steel 50 Ω Cables
Stainless steel cables satisfy cryogenic or medical applications where low thermal conductivity or hypoallergenic properties are required.
